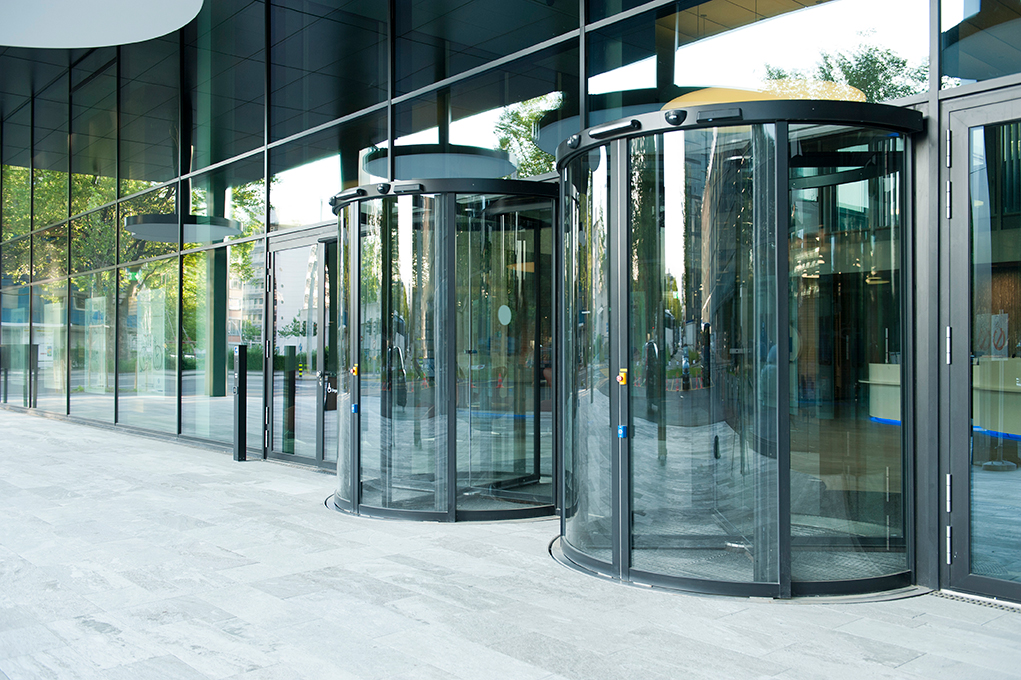

REVOLVING DOORS

The difference between automatic and manual revolving doors is that the automatic doors are equipped with drive units and sensor systems, which make the door operate automatically. Three/four-wing doors are cost-efficient, and are commonly used in banks, shopping centers, hotels, office buildings, amongst others.

Auto Ingress keeps the strictest and highest standards in its process. The finish of the anodized aluminum is no exception, offering more than twenty different choices of color and surface texture finishing.

Other standards of this stainless material include its wear-resistance, corrosion resistance, electrostatic prevention, amongst other features to meet different architectural styles and demands.

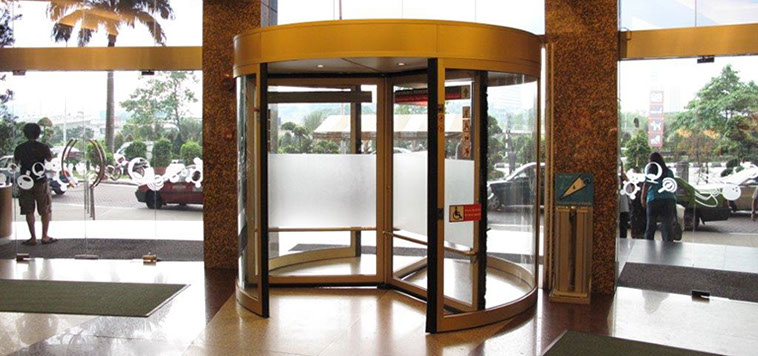

AR 3/4 WING REVOLVING DOOR





AR023 3/4 wing revolving doors are suitable for the main entrance and exit in hotels, office buildings and commercial buildings.

It uses the running mode of revolving around the central axis, featuring high strength aluminum alloy frame assembly, removable structure, easy installation, convenient transportation, and convenient maintenance. The high quality bearing, multiple sealing and reasonable supporting structure can endure a harsh environment such as sand and dust.

According to customers’ requirements, the manual KM023 can be upgraded to a standard automatic door. The new version KA023C, is the upgrade product from the KA023. It can be remote controlled by a typical wireless mobile phone, or via the internet to change functions, such as lock the door and trouble shooting.



The diversified surface treatment processes and colors can satisfy your personalized requirements.



Energy Saving Eco-friendly

KA023 series products perfectly combine style, design and mechanics, with high technology, high performance and high precision design, feature quality work, heat preservation, windproof, dustproof, sound insulation, stable performance, all concise and practical.



Maintenance

Auto Ingress is committed to providing ample and reliable accessories to the suppliers and distributors of its products. Auto Ingress provides prompt technical support in order to provide fast and effective after-sales service to customers all around the world.

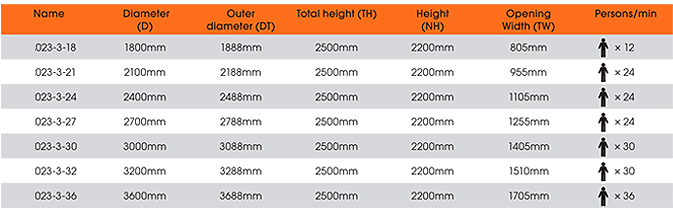

AR023 - 3 Wings Revolving Door Dimension

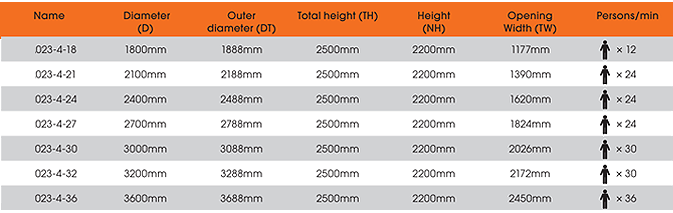

AR023 - 4 Wings Revolving Door Dimension

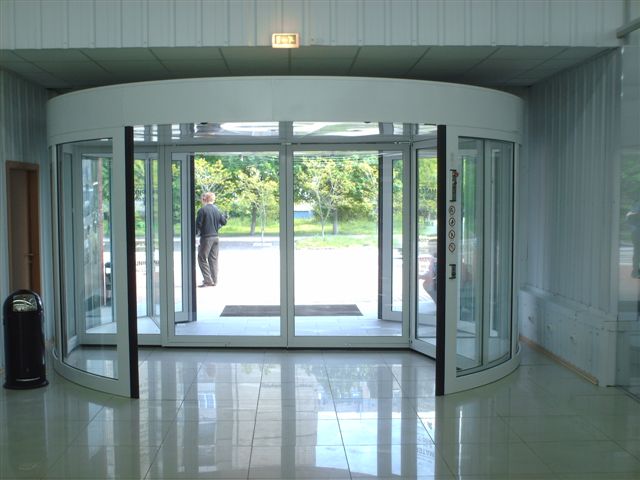

AR DISPLAY CASE





AR022 automatic revolving door is a unique revolving door concept with an unprecedented passage capacity. It provides a bi-directional, straight-line access and easily accommodates large objects such as shopping carts, luggage trolleys, stretchers and wheelchairs. Combining the highest possible capacity and ease of use with maximum flexibility, we offer a modular revolving door concept allowing us to design a high capacity entrance to meet your requirements.



Functions

Internet monitoring system

  •   Full time door monitoring for operation status updates.
  •   Instantaneous automatic alarm for malfunctions
  •   Parameter adjustment upon client’s request



The system provides remote access for diagnosis as well as monitoring of the operational status for the KAR022i. Adopting advanced radio digital communication technology and voice interactive technology to serve the following in the event of malfunction:

  •   Interface to the GSM mobilephone, meanwhile SMS is controlled
  •   Interface to the digital graphic processor of CPU of KA022i
  •   Interface to the building Automation SYS



3 in 1



Revolving Doors

The revolving door design completely eliminates exchange of indoor and outdoor air and greatly reduces excess heating costs. Under normal circumstances, an installed revolving door will essentially pay for itself within two years just through increased energy savings.





Sliding Doors

During periods of pleasant weather, high foot traffic or large cargo deliveries, the sliding doors in between the wing doors can be opened, neatly solving all your logistical problems.







Balanced Doors

The three-in-one performance capability of the wing doors is completed with the balanced doors. Combining the elegance and efficiency of the wing doors and the convenience of the sliding doors, the balanced doors can be used in case of emergencies by providing the fastest method of escape, ensuring the three-in-one double panel doors to be the safest.



Maintenance

Auto Ingress is committed to providing ample and reliable accessories to the suppliers and distributors of its products. Auto Ingress provides prompt technical support in order to provide fast and effective after-sales service to customers all around the world.

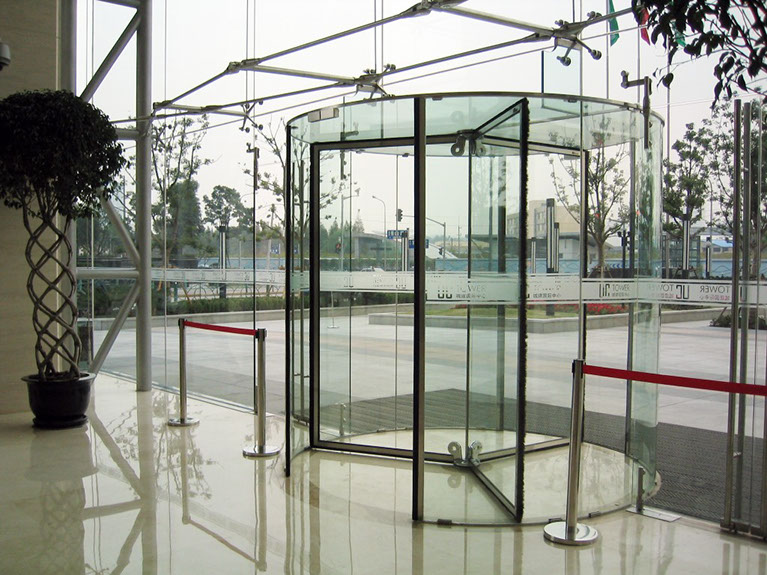

AR CRYSTAL DOOR





The AR Crystal Door is made of a special safety glass, featuring a unique structure and an impeccable appearance.



As the door is designed without a central column, clearer visibility allows it to become sparkling and more elegant. With Auto Ingress’s unique music note style clamp, the AR071 door incorporates exceptional mechanic s with aesthetics, increasing both safety and beauty.



Before the emergence of the music note style clamping system, most of the crystal doors use the conventional square clamping system. However, the traditional square clamp is unable to decentralize the pressure effectively, weakening the glass a round the clamp, and the therefore creating safety hazard.



The music note style clamp is named after its appearance, similar to one of the musical notes. The clamp’s round shape makes the bearing points of the edge distribute pressure equally, keeping the door body steady and firm.

This system has proven an impeccable safety record for Auto Ingress’s crystal doors.

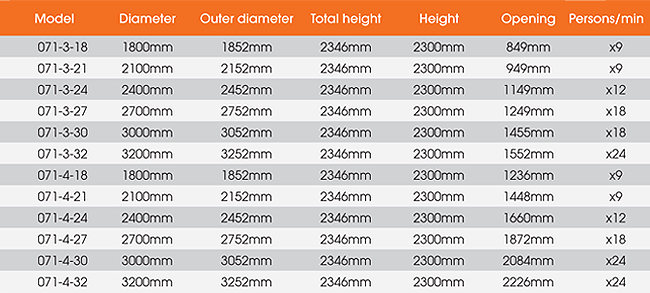

Specifications of Crystal Doors

The AR071 door uses a unique bottom driving design. This allows the door body to be smooth and transparent, satisfying modern designers’ preferences.

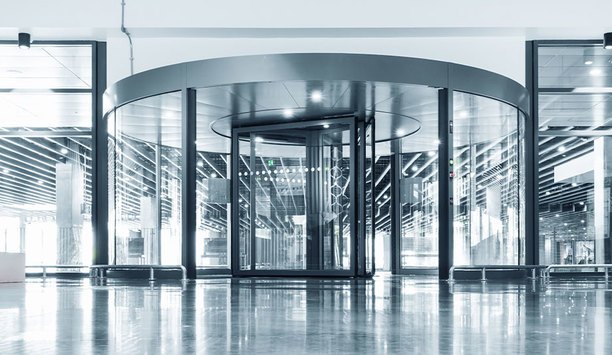

AR LARGE DIAMETER REVOLVING DOOR



AR072 is the best solution for the buildings where there are columns in door areas. The ingenious design incorporates the columns inside the door frame, enhancing the overall appearance and practicality.



Energy-Saving and Environment-Friendly

Auto Ingress’s revolving doors use an unique design referred to as windmill revolving body.

Its revolving direction is consistent with that of the wind. The design cuts of the exchange of indoor and outdoor air, allowing for cost and energy savings of 10% or more than other revolving doors. It is estimated that the cost of a Auto Ingress two-wing automatic revolving door is equivalent to the money it saves in three years.



The price difference of revolving doors and sliding doors are equal to the energy consumption cost of a 2-3 year timeframe.



Surface Treatment

Auto Ingress keeps the strictest and highest standards in its process. The finish of the anodized aluminum is no exception, offering more than twenty different choices of color and surface texture finishing.



Other standards of this stainless material include its wear-resistance, corrosion resistance, electrostatic prevention, amongst other features to meet different architectural styles and demands.
